Super Deck Sheet
| Product Detail | Description |
|---|---|
| Product Name | Super Deck Sheet (DS-953) |
| Material | CRCA Steel, Galvanized Steel, GP Skin Pass Steel or PPGI |
| Thickness | 0.80 mm to 2.00 mm |
| Available Finish | Galvanized, Plain Steel or Colour-Coated Finish |
| Length | Up to 13 metres or customized as per site requirement |
| Width | 953 ± 10 mm overall width and 923 ± 10 mm cover width |
| Key Benefits | High load capacity, reduced concrete usage, long-span performance and fast installation |
| Main Features | 64 ± 2 mm profile depth, 305 ± 5 mm pitch, embossed ribs, concrete bonding and weather resistance |
| Applications | Composite floors, industrial buildings, warehouses, commercial complexes, roofs and multistorey structures |

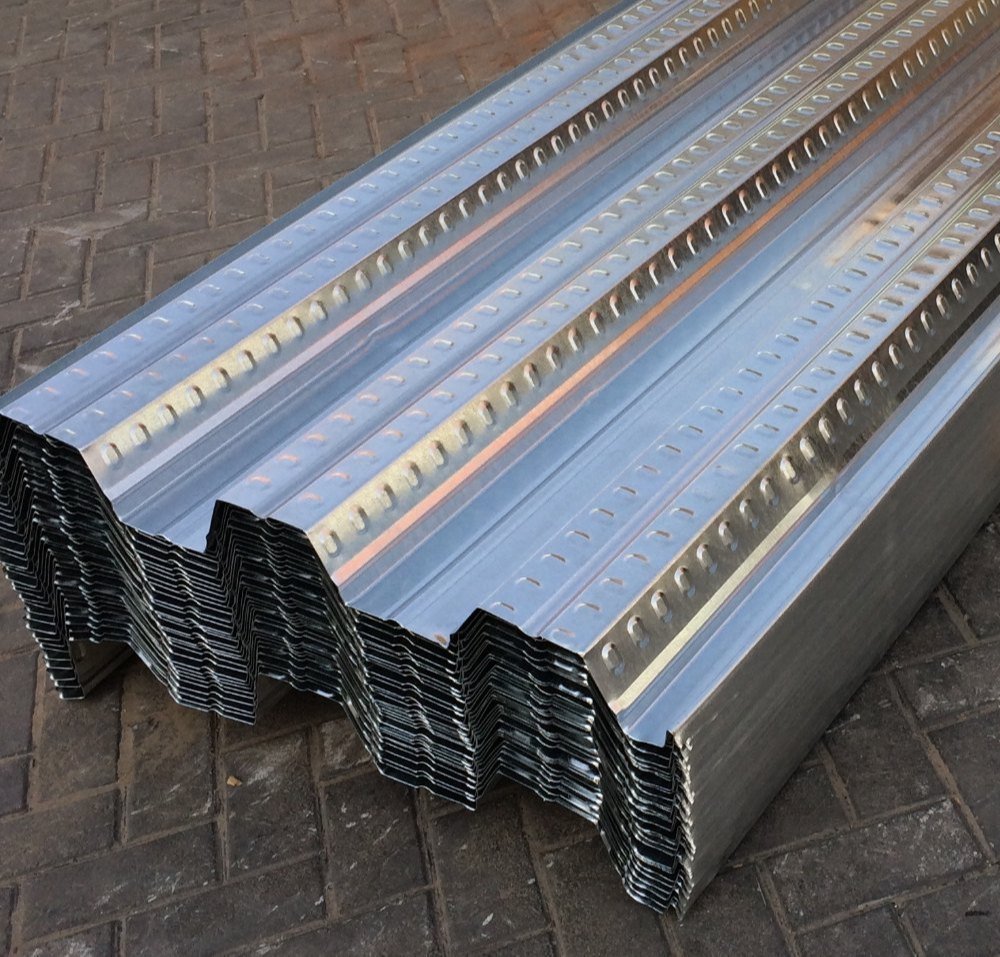

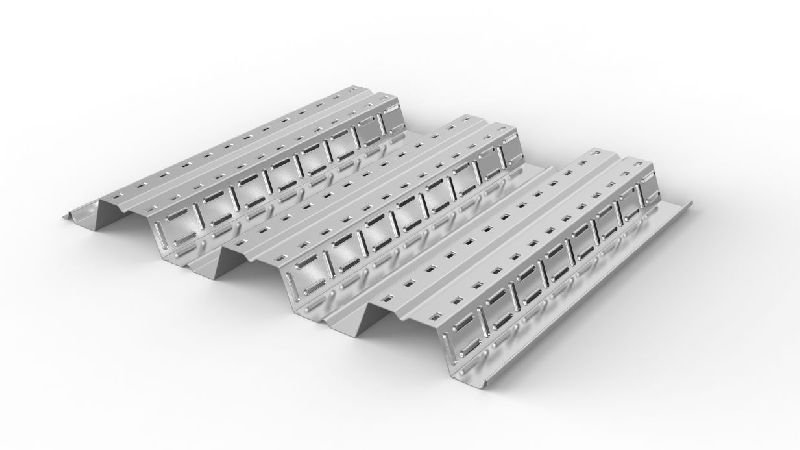

Super Deck Sheet (DS-953) is a high-strength composite metal decking solution designed for roofing and concrete floor systems. Its corrugated steel profile includes specially engineered embossments that create a strong bond between the decking sheet and concrete slab, allowing both materials to work together as an efficient composite structure.

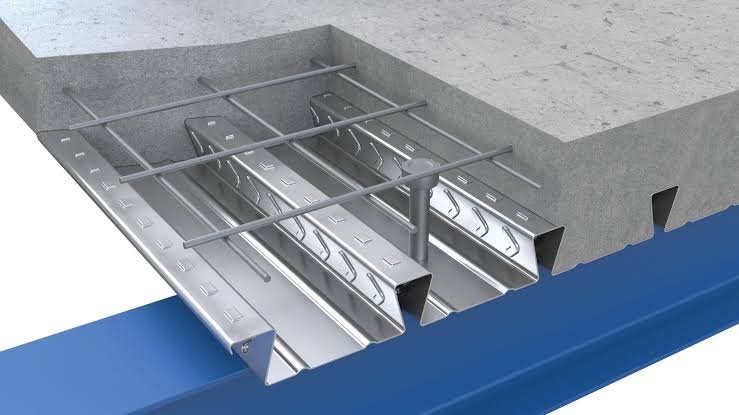

The sheet acts as permanent shuttering during concrete pouring and helps reduce concrete volume, construction time and supporting framework requirements. With a profile depth of approximately 64 mm, an overall width of 953 mm and lengths of up to 13 metres, it provides excellent load-bearing capacity and long-span performance. Super Deck Sheets are widely used in warehouses, factories, commercial buildings, industrial floors, multistorey structures and roof decking applications.
