Turbo Ventilator with FRP & PC Base
| Product Detail | Description |
|---|---|
| Product Name | Turbo Ventilator with FRP & PC Base |
| Material | Aluminium, Stainless Steel SS 202/304/430 or Polypropylene |
| Base Material | FRP or Polycarbonate |
| Available Sizes | 21 inch and 24 inch |
| Neck Diameter | 21 inch: 534 mm; 24 inch: 610 mm |
| Outer Diameter | 21 inch: 610 mm; 24 inch: 762 mm |
| Overall Height | 21 inch: 330 mm; 24 inch: 534 mm |
| Thickness | 0.3 mm to 0.5 mm |
| Fins/Vanes | 21 inch: 24 fins; 24 inch: 30 fins |
| Top Plate Diameter | 21 inch: 350 mm; 24 inch: 380 mm |
| Bearings | 2 sealed bearings |
| Power Source | Wind Driven |
| Suitable Roof Height | 10 ft to 30 ft |
| Key Benefits | Continuous ventilation, heat reduction, improved airflow and zero electricity consumption |
| Main Features | Weather-resistant, corrosion-resistant, rain-protective, smooth rotation and low maintenance |
| Applications | Factories, warehouses, workshops, industrial plants, sheds and commercial buildings |

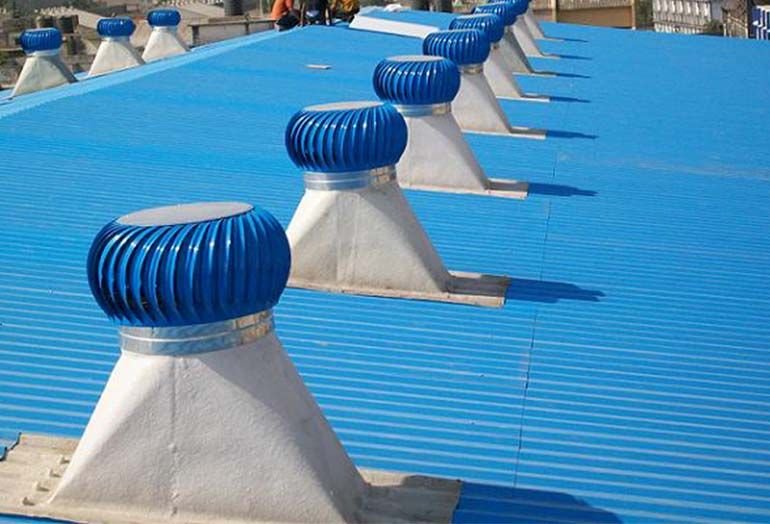

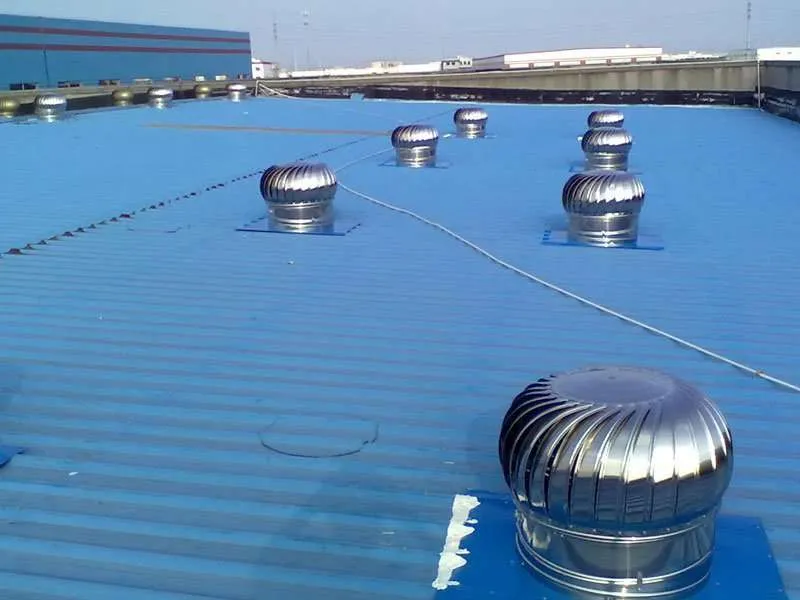

Turbo Ventilator with FRP and Polycarbonate Base is a wind-driven ventilation system designed to remove hot air, humidity, smoke, fumes and stale air from industrial and commercial buildings. It operates naturally with wind energy and does not require electricity, helping improve indoor air circulation while reducing ventilation and operating costs.
The ventilator is available in 21-inch and 24-inch sizes and can be manufactured using aluminium, stainless steel or polypropylene. Its aerodynamically designed fins rotate smoothly on sealed bearings, creating continuous air extraction even at low wind speeds. The matching FRP or polycarbonate base provides secure installation and can be adapted to different roofing profiles and slopes.
The weather-resistant construction helps protect the ventilator from corrosion, rain and dust while ensuring reliable long-term outdoor performance. It is suitable for factories, warehouses, workshops, industrial plants, production sheds and commercial buildings where natural and energy-efficient ventilation is required.
Related products
Louvers
| Product Detail | Description |
|---|---|
| Product Name | Louvers |
| Material | Metal, Polycarbonate or Multiwall Polycarbonate |
| Available Types | Metal Box Type, Polycarbonate Louver and Multiwall Louver |
| Size | Available in various standard and customized sizes |
| Key Benefits | Improves airflow, reduces indoor heat and supports natural ventilation |
| Main Features | Weather-resistant, durable, lightweight and easy to install |
| Applications | Factories, warehouses, industrial sheds and commercial buildings |
Ridge Ventilators
| Product Detail | Description |
|---|---|
| Product Name | Ridge Ventilators |
| Material | Pre-Painted Galvanized Steel, Galvalume Steel or Bare Galvalume |
| Thickness | 0.47 mm, 0.50 mm or 0.60 mm TCT |
| Available Finish | Colour Coated, Galvanized or Bare Galvalume Finish |
| Length | Customized according to roof ridge length |
| Width | Customized according to roofing profile and ventilation requirement |
| Key Benefits | Removes hot air and moisture, improves airflow, controls indoor temperature and reduces energy consumption |
| Main Features | Leak-proof ridge design, wire mesh protection, corrosion resistance, natural ventilation and easy installation |
| Applications | Industrial warehouses, manufacturing plants, factory sheds and industrial buildings |
